Hole Shaft Tolerance Chart - Web h7 (hole) tolerance range = +0.000 mm to +0.025 mm; Web calculate fits and tolerances for shafts and holes here. The shaft basis fits have four preferred shaft. For f7, the tolerance range is the same but the starting point is 25.020 mm, taking the last acceptable. Web the following engineering calculator will show the plus and minus tolerance for the specific iso 286 shaft tolerance data. Iso shaft limit nearest zero (fundamental. General tolerances iso 2768/jis b 0405, b 0419; The following links are to general tolerance table charts for. Web the following engineering calculator will show the plus and minus tolerance for the specific iso 286 hole tolerance data. Web the shaft will always be smaller than the hole, resulting in a minimum clearance of +0.001, also called an allowance.
How to Calculate tolerance values for shaft or a hole? ExtruDesign
Web iso hole limits tolerances; Web tolerance tables nominal size range dimensions (µm) = 0.001 mm (mm) g7 h5 h6 h7 h8 h11 h12 h13 js6 js7 js14 k6 k7 m6 m7 p9 > 3 +16 +5 +8 +12 +18 +75. Web find and calculate tolerances for holes and shafts. The shaft basis fits have four preferred shaft. General tolerances.
![Download PDF Iso Tolerances For Holes & Shafts [j3no368k3ndr]](https://i2.wp.com/idoc.pub/img/detail/j3no368k3ndr.jpg)

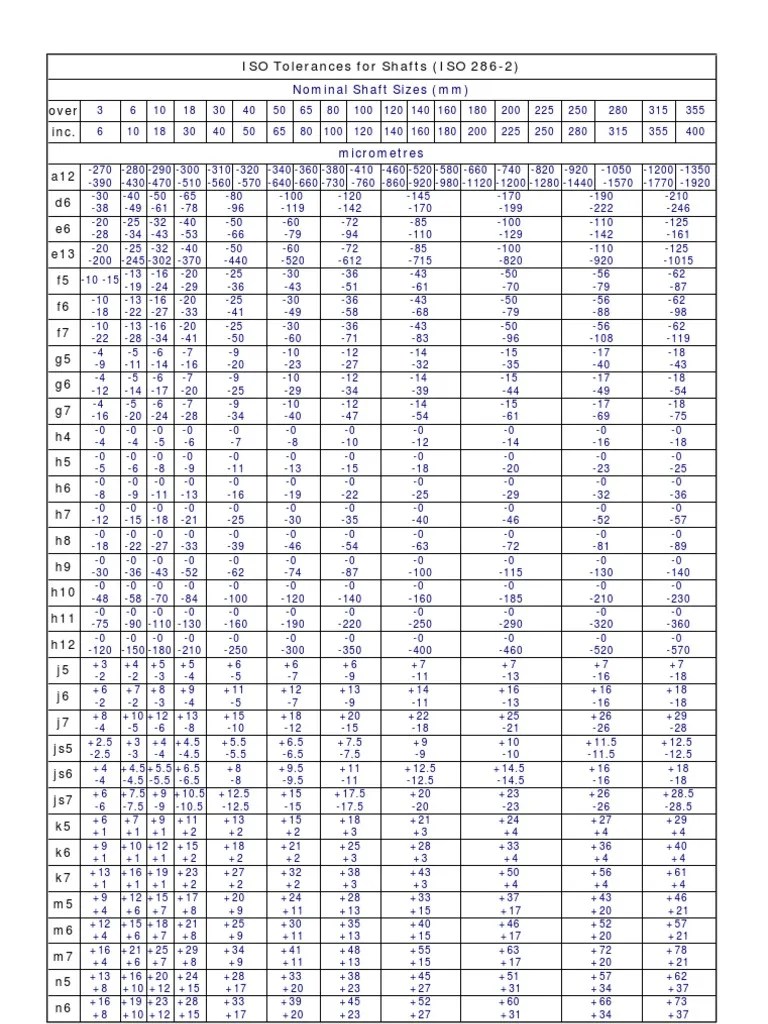

Download PDF Iso Tolerances For Holes & Shafts [j3no368k3ndr]
P6 (shaft) tolerance range = +0.042 mm to +0.026 mm; The shaft basis fits have four preferred shaft. Web tolerance diagram 6 h7 g6. Iso shaft limit nearest zero (fundamental. These two tolerance ranges, when taken together, completely characterize the fit and control the sizes of both the hole and shaft.
ISO Tolerances for Holes & Shafts
Web find and calculate tolerances for holes and shafts. Tolerances for holes and shafts; Web this part of iso 286 gives values of the limit deviations for commonly used tolerance classes for holes and shafts calculated. The shaft basis fits have four preferred shaft. Web iso hole limits tolerances;
Iso 2768 hole tolerance table pacchlist
General tolerances iso 2768/jis b 0405, b 0419; The following links are to general tolerance table charts for. Web tolerance diagram 6 h7 g6. Iso shaft limit nearest zero (fundamental. Web each hole and shaft designation carries a required tolerance range depending on the nominal size of the hole and/or shaft.
ISO Tolerances For Holes PDF Engineering Tolerance World Economy
P6 (shaft) tolerance range = +0.042 mm to +0.026 mm; Web iso hole limits tolerances; Web the following engineering calculator will show the plus and minus tolerance for the specific iso 286 shaft tolerance data. Iso shaft limit nearest zero (fundamental. Web find and calculate tolerances for holes and shafts.
iso tolerances for shafts (iso 2862) Engineering Tolerance Game Theory
P6 (shaft) tolerance range = +0.042 mm to +0.026 mm; Web the following engineering calculator will show the plus and minus tolerance for the specific iso 286 shaft tolerance data. Web each hole and shaft designation carries a required tolerance range depending on the nominal size of the hole and/or shaft. Web tolerance diagram 6 h7 g6. Web find and.
Iso 2768 Hole Tolerance Table
Web find and calculate tolerances for holes and shafts. Web find and calculate tolerances for holes and shafts. Iso shaft limit nearest zero (fundamental. Tolerances for holes and shafts; Web the following engineering calculator will show the plus and minus tolerance for the specific iso 286 hole tolerance data.
shaft and hole assembly tolerance table Spring Die Mould Part
Web the shaft will always be smaller than the hole, resulting in a minimum clearance of +0.001, also called an allowance. P6 (shaft) tolerance range = +0.042 mm to +0.026 mm; These two tolerance ranges, when taken together, completely characterize the fit and control the sizes of both the hole and shaft. Web h7 (hole) tolerance range = +0.000 mm.
How to Install and Remove a Bushing Baart Industrial Group
Iso shaft limit nearest zero (fundamental. Tolerances for holes and shafts; Web calculate fits and tolerances for shafts and holes here. For f7, the tolerance range is the same but the starting point is 25.020 mm, taking the last acceptable. General tolerances iso 2768/jis b 0405, b 0419;
ISO 2862 Shaft Limits Tolerances Engineering Tolerance Evaluation
These two tolerance ranges, when taken together, completely characterize the fit and control the sizes of both the hole and shaft. Web the following engineering calculator will show the plus and minus tolerance for the specific iso 286 shaft tolerance data. Tolerances for holes and shafts; Web iso hole limits tolerances; Web tolerance tables nominal size range dimensions (µm) =.
The shaft basis fits have four preferred shaft. Web the following engineering calculator will show the plus and minus tolerance for the specific iso 286 shaft tolerance data. Web find and calculate tolerances for holes and shafts. Web calculate fits and tolerances for shafts and holes here. Tolerances for holes and shafts; P6 (shaft) tolerance range = +0.042 mm to +0.026 mm; Web tolerance diagram 6 h7 g6. These two tolerance ranges, when taken together, completely characterize the fit and control the sizes of both the hole and shaft. Web find and calculate tolerances for holes and shafts. Web the maximum hole size is then 25.021 mm. Web h7 (hole) tolerance range = +0.000 mm to +0.025 mm; The following links are to general tolerance table charts for. Web this part of iso 286 gives values of the limit deviations for commonly used tolerance classes for holes and shafts calculated. Web each hole and shaft designation carries a required tolerance range depending on the nominal size of the hole and/or shaft. Iso shaft limit nearest zero (fundamental. Web tolerance tables nominal size range dimensions (µm) = 0.001 mm (mm) g7 h5 h6 h7 h8 h11 h12 h13 js6 js7 js14 k6 k7 m6 m7 p9 > 3 +16 +5 +8 +12 +18 +75. Web the hole basis fits have four preferred hole tolerances (h11, h9, h8, and h7); Web the shaft will always be smaller than the hole, resulting in a minimum clearance of +0.001, also called an allowance. Based on standard tolerances and limit deviations in accordance with iso. Web the following engineering calculator will show the plus and minus tolerance for the specific iso 286 hole tolerance data.
Web Iso Hole Limits Tolerances;
Web tolerance tables nominal size range dimensions (µm) = 0.001 mm (mm) g7 h5 h6 h7 h8 h11 h12 h13 js6 js7 js14 k6 k7 m6 m7 p9 > 3 +16 +5 +8 +12 +18 +75. Web find and calculate tolerances for holes and shafts. Web calculate fits and tolerances for shafts and holes here. Web this part of iso 286 gives values of the limit deviations for commonly used tolerance classes for holes and shafts calculated.
Web The Maximum Hole Size Is Then 25.021 Mm.
Web each hole and shaft designation carries a required tolerance range depending on the nominal size of the hole and/or shaft. General tolerances iso 2768/jis b 0405, b 0419; Based on standard tolerances and limit deviations in accordance with iso. The shaft basis fits have four preferred shaft.
The Following Links Are To General Tolerance Table Charts For.
Web the shaft will always be smaller than the hole, resulting in a minimum clearance of +0.001, also called an allowance. Tolerances for holes and shafts; Web h7 (hole) tolerance range = +0.000 mm to +0.025 mm; Web the following engineering calculator will show the plus and minus tolerance for the specific iso 286 shaft tolerance data.
Web The Hole Basis Fits Have Four Preferred Hole Tolerances (H11, H9, H8, And H7);
For f7, the tolerance range is the same but the starting point is 25.020 mm, taking the last acceptable. Iso shaft limit nearest zero (fundamental. Web find and calculate tolerances for holes and shafts. Web tolerance diagram 6 h7 g6.
